SiteWash Flexi
SiteWash Flexi: compact 7 ft wheel wash for tight entrances
A compact 6 ft 7 in (2 m) wheel wash with the wash deck mounted directly on the tank. One excavation, a smaller footprint, and a fit for tight site entrances.
- Wash passage
- 6 ft 7 in (2 m)
- Excavation
- One
- Layout
- Wash deck on the tank
- Axle rating
- 33,000 lb (15 t)
Overview
About the SiteWash Flexi
Standard SiteWash systems place the wash bay beside the recycling tank, which needs two excavations at two depths. On the SiteWash Flexi, the driving bars and side walls sit on a support frame mounted directly on the tank, so the whole system goes into one excavation and takes up less room at the entrance.
The SiteWash Flexi was supplied to the zinc concentrate loadout at Eldorado Gold's Olympias mine in Greece, delivered through Ausenco in 2025, where concentrate washed off the trucks is recovered and returned to the process.
Where it's used. The concentrate loadout at the Olympias mine, Greece.
Specifications
Specifications
| Wash passage | 6 ft 7 in (2,000 mm) |
|---|---|
| Layout | Driving bars and side walls on a support frame, mounted on the tank |
| Excavation | One |
| Water capacity | 1,585 gal (6,000 L) |
| Electrical supply | 480 V three phase 60 Hz (North America), or 400 V three phase 50 Hz (Europe) |
| Axle rating | 33,000 lb (15 t) |
All spray systems: 9 ft 10 in (3,000 mm) wheel passage, 11 ft 2 in (3,400 mm) chassis clearance, 4 ft 8 in (1,420 mm) side screens, rated for 33,000 lb (15 t) per axle and vehicles up to 45 t gross. Open top, with no height restriction.
Throughput depends on ground conditions and water volume, and every system is sized from a site assessment. Full specifications, general arrangement drawings and lift weights are supplied with every quotation.
At a glance
How the SiteWash Flexi is built
- Platform
- Bolted steel superstructure in 2-meter modules
- Tank
- SiteWash steel tank, existing concrete tank or lagoon
- Groundworks
- Excavation and compacted stone base
- Delivery
- One trailer, one lift, with the steel tank
- Hot work
- None on site
- Wash bay
- No moving parts
Standards
Engineering standards
- Structural steel
- S235 and S355
- Finish
- Hot-dip galvanized to EN ISO 1461
- Construction
- Bolted, with no welding on site
- Rating
- 33,000 lb (15 t) per axle, 45 t gross
- Controls
- Siemens controller in a 304 stainless steel IP66 panel, Eaton HMI option
- Electrical
- CE marked for the EU. 480 V 60 Hz with UL 508A panel for North America
Installation
Installation

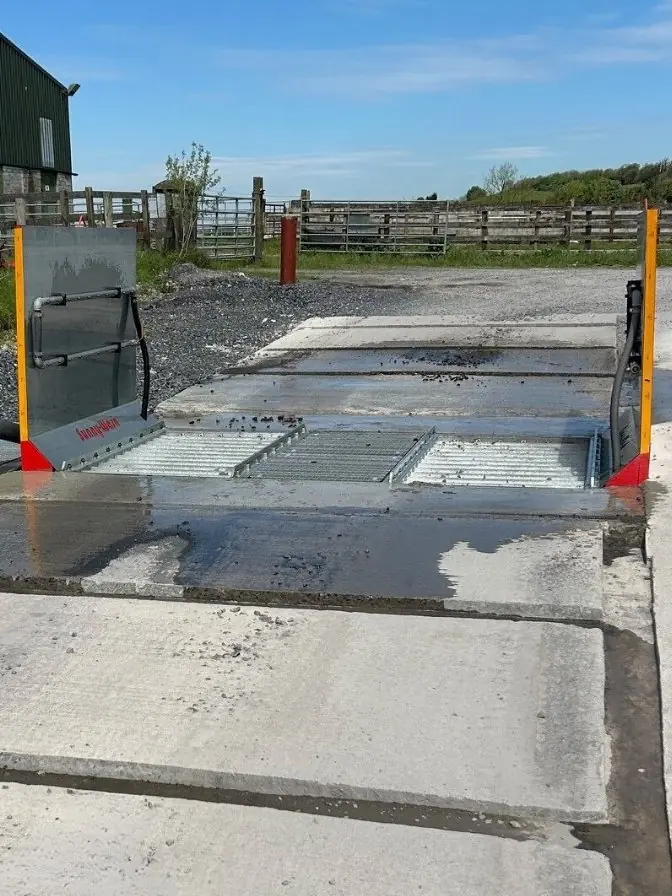

Inset. The tank and wash bay go into a stepped excavation on a compacted stone base and finish flush with the road, so trucks drive straight through with nothing to strike.

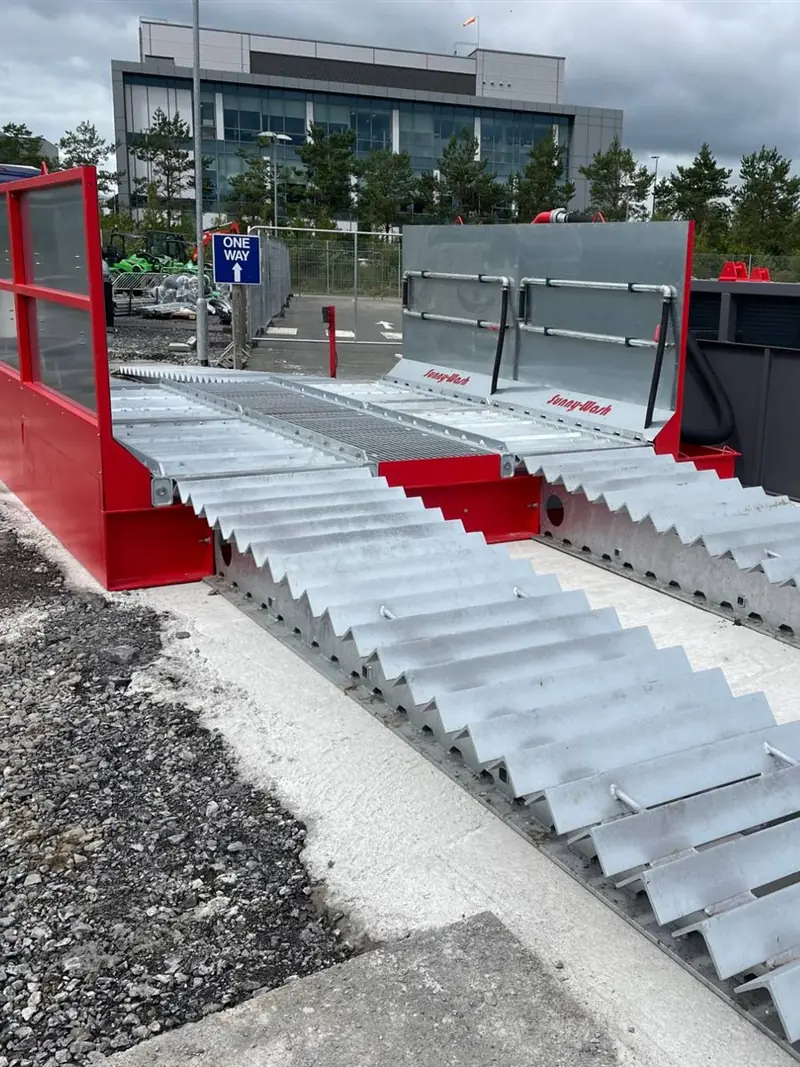

Surface mounted. Sits on the ground with ramps, for sites where excavation isn't possible or permitted.
With no welding or hot work. Installed by Glanaco, a local partner or the contractor's own team, working to the Glanaco installation manual with our support. Operator training is included.
Questions
Frequently asked questions
What power does the SiteWash Flexi need?
A three phase supply: 480 V 60 Hz in North America or 400 V 50 Hz in Europe. The pump rating is confirmed with the quotation.
Does the SiteWash Flexi need a water connection?
Yes, for the first fill and for top-up. Wash water is recirculated in a closed loop, so top-up covers only evaporation and water carried off on vehicles.
How many trucks a day can the SiteWash Flexi handle?
Sized to the site, depending on ground conditions and water volume. Every system is sized from a site assessment.
How often is the tank emptied?
Typically every two to three months, and sooner on heavy ground. The site arranges emptying with a vacuum truck, and Glanaco maintains and services the system.
Can I rent the SiteWash Flexi?
Yes. Rental is available direct in Ireland and the UK, and through partners in other markets. Rental includes delivery, installation, commissioning and collection.
What is the warranty?
5 years on the superstructure and tank. 2 years on pumps and control panels. The warranty applies to new systems.
Tell us about your site
Describe the entrance, the traffic and the timeline, and we will recommend the right system.
